PowerPack Rebar Design & Detailing for Revit®

Supports complete structural BIM model creation with 3D rebar tools, import of FEM results for design and detail of 3D rebar cages.

1 Structural engineers and designers, enhance your productivity with accurate, automated reinforced concrete design.

2 Seamless integration with Revit® enables better collaboration in real time. Get precise, error-free designs.

3 Unlock the full potential of Autodesk Revit with PowerPack for Rebar Design, plus benefit from free, expert support to optimize your Revit experience

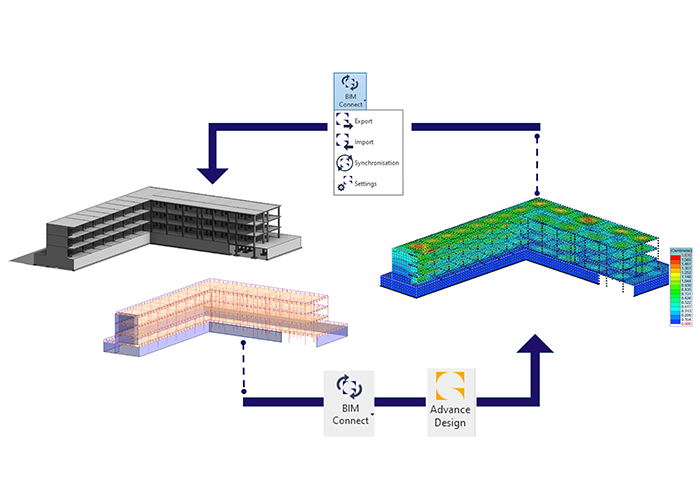

Better Structural BIM Workflows

Improve your designs and streamline workflows, from importing and sychronizing to visualizing forces and reinforcement.

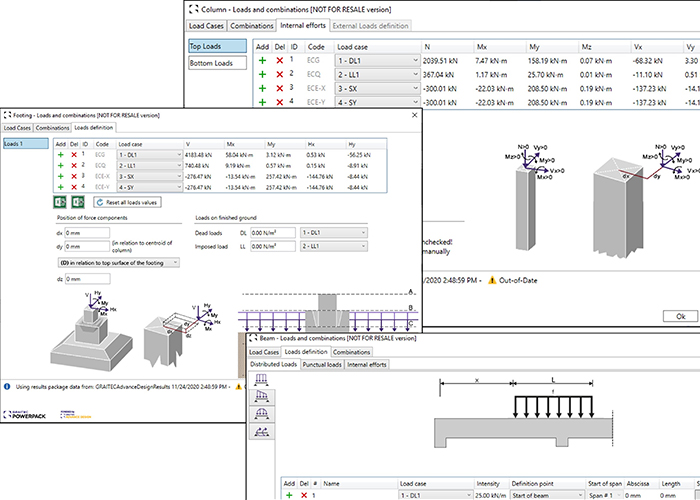

Faster Structural Element Calculations

Automatically create, update and modify reinforcement cages for slabs, walls, beams, columns, and footings. Use imported or manual design results to support international design codes.

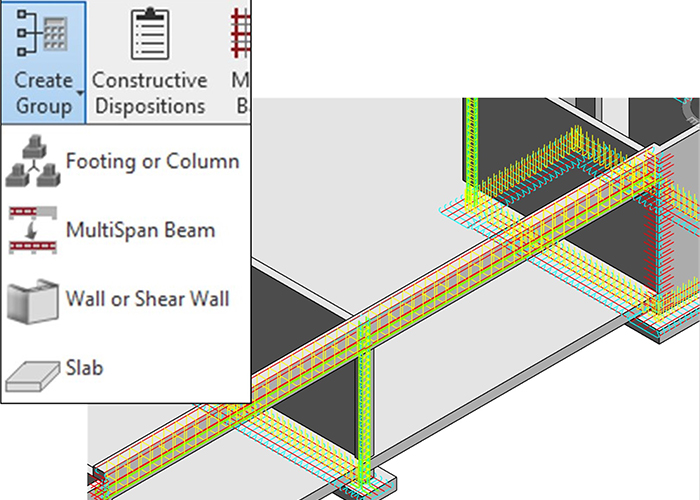

More Efficient Designs Using Groups

Save time combining structural elements with similar geometric and structural assumptions. Generate theoretical reinforcement area envelopes and worst-case scenarios for geotechnical checks.

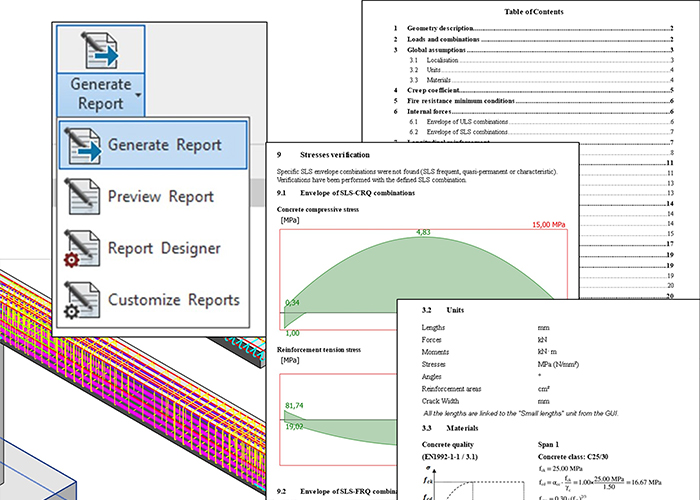

Custom Reports

Generate custom simplified or detailed reports on design assumptions and results. With Report Viewer, preview and print reports or export to Excel, Word and PDF.

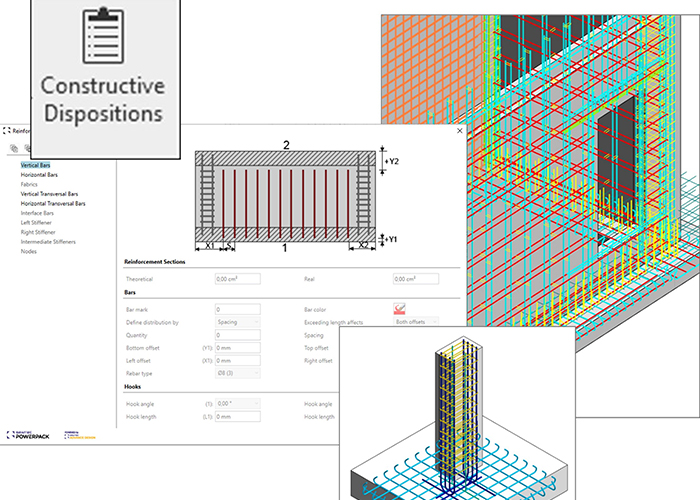

Quick Preliminary Designs

Generate full 3D reinforcement cages for evaluation on beams, columns, footings, and walls. Constructive Dispositions enable preliminary design without full calculations. Generate 3D reinforcement in seconds as a base for reinforcement models that evolve with parameters.

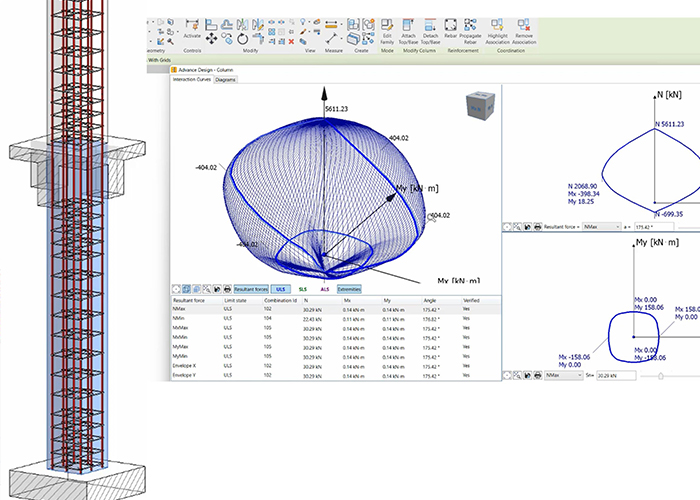

Efficient Structural Analysis

Graphically verify structural analysis with diagrams of results. Verify stresses and interaction curves for linear elements.

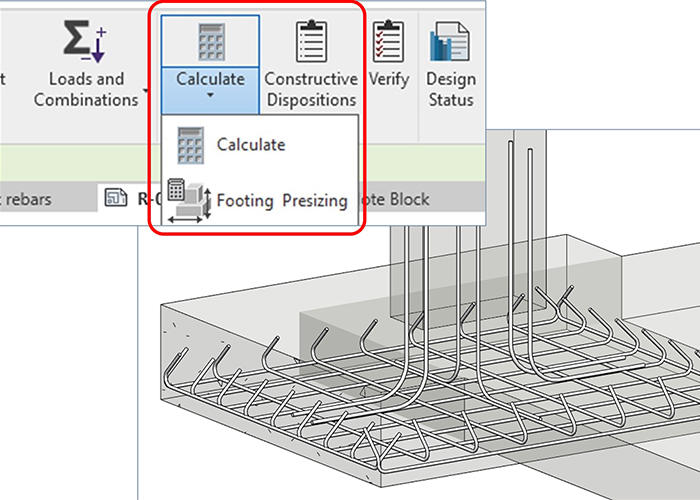

Focused Analysis

Design structural elements directly in Revit® – no need for external analysis software. Base automatic 3D rebar cages on load types and combinations – manual or imported from Excel spreadsheets.
