PowerPack Rebar Detailing for Revit®

1 Structural professionals using Autodesk Revit® software can speed up all aspects of 3D rebar cage generation and reinforcement editing.

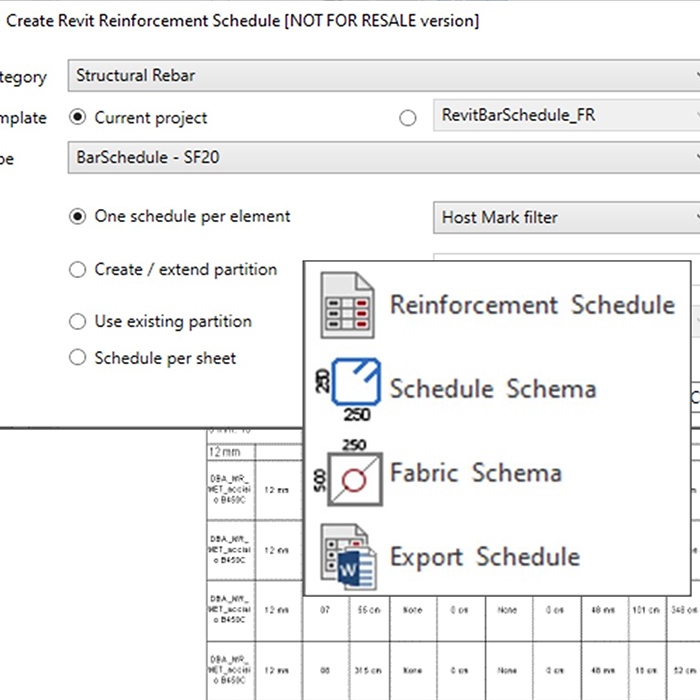

2 Automate documentation, drawings and schedules with custom schemas to support local and various international requirements.

3 Unlock the full potential of Autodesk Revit with PowerPack for Rebar Detailing, plus benefit from free, expert support to optimize your Revit experience.

Main Bars

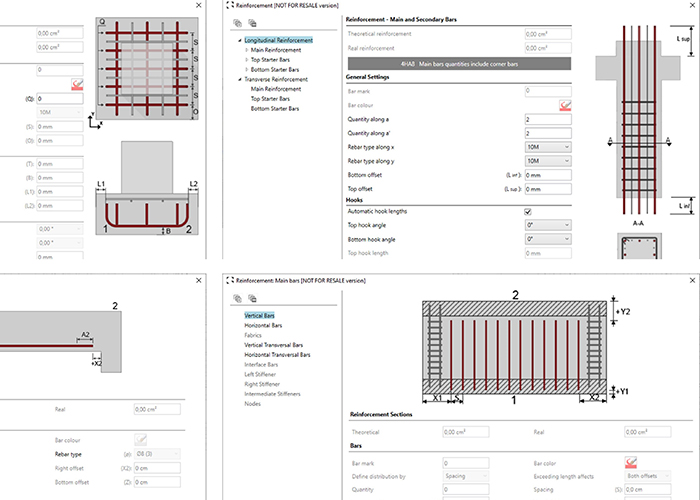

Quickly create complete, complex rebar cage and bar configurations. Generate full 3D reinforcement cages with structural concrete beams, columns, footings, and wall elements.

Generate Drawings

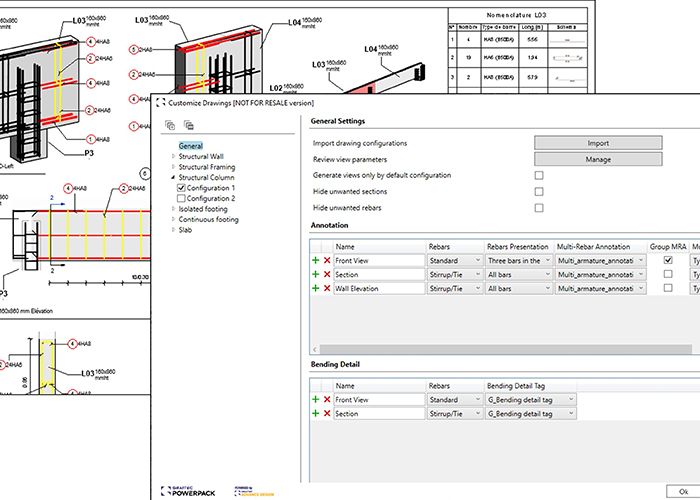

Save time with automatic generation of sections, detailed views with tags, bending details, and bar schedules directly on a Revit® sheet. Custom title blocks fit all structural elements (beam, column, footing, and walls). Advanced user configuration can create rebar drawings for single or multiple elements.

Split Bars

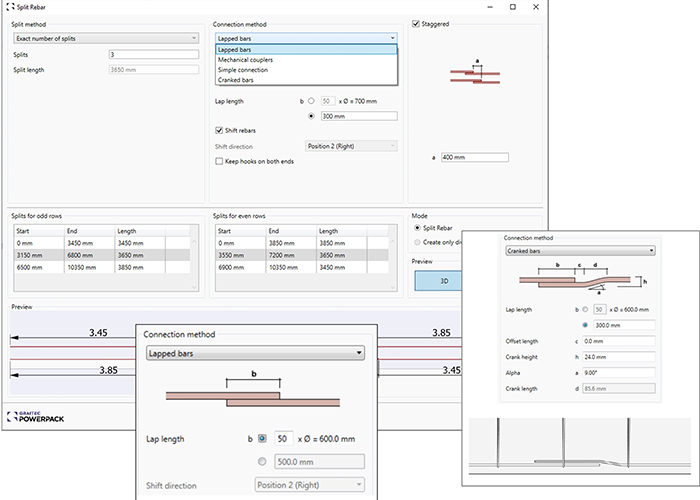

Adapt to local and project scenarios by setting rules and using different connection methods to manage rebar splitting in Autodesk Revit®.

Rebar Visibility

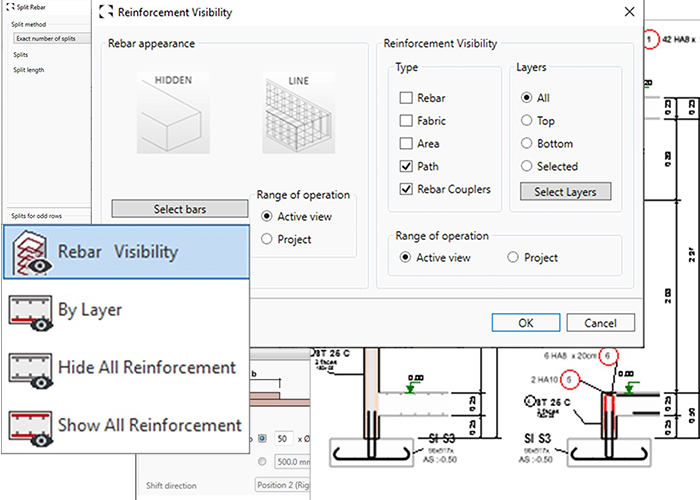

Better manage and optimize visibility of reinforcement by type in each Revit® view. Define layers and assign rebar.

End Bar Symbol

Assure precision with highly customizable symbols as graphical representations on 2D views. Show the end location of straight bars when reinforcement bars overlap on Revit® views.

Reinforcement Openings

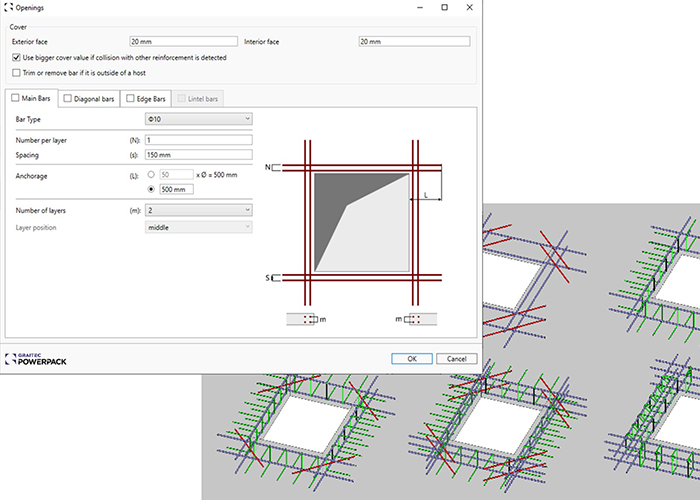

Quickly generate constructive reinforcement for single or multiple openings. Detect and manage creating of rebar around openings on slabs or walls in Revit®. Selected openings offer configuration parameters, plus options for different reinforcement bar types.
